เซนเซอร์แสง KY-018 photo sensitive sensor module light module detects photo sensitive resistor module

เซนเซอร์แสง KY-018 photo sensitive sensor module light module detects photo sensitive resistor module

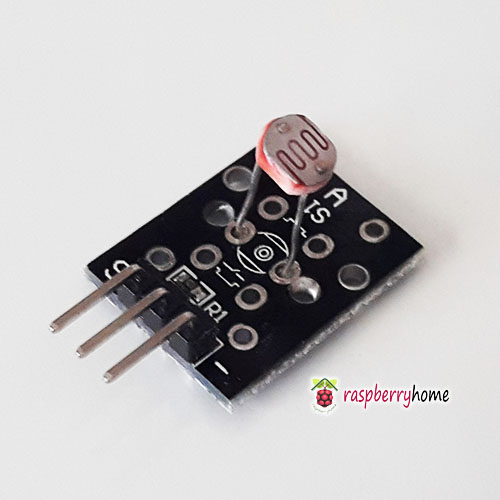

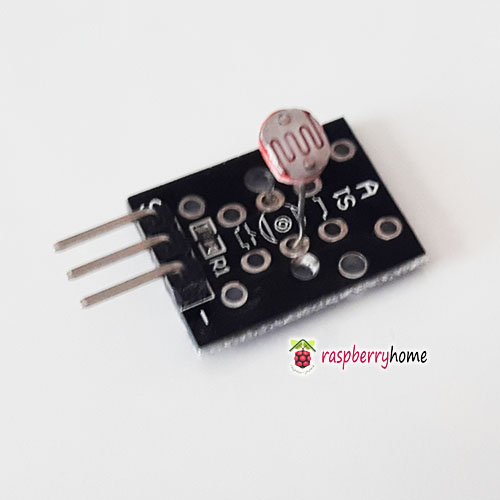

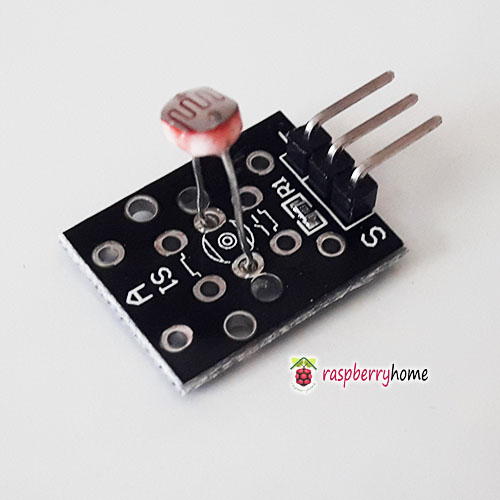

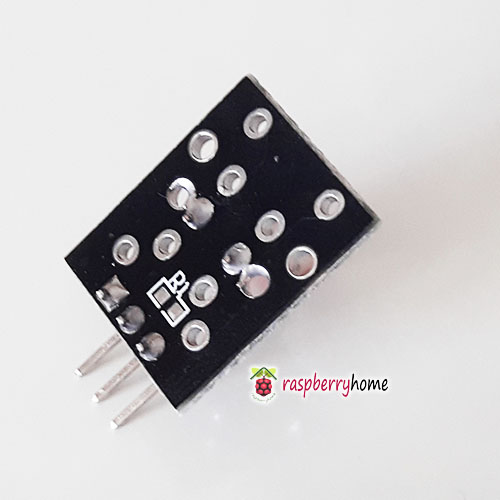

3pin KEYES KY-018 Optical Sensitive Resistance Light Detection Photosensitive Sensor Module for Arduino DIY Kit KY018

1. according to the spectral characteristics of three photoresistor photoresistor: UV light-sensitive resistors, infrared light-sensitive resistors,  Visible photoresistor;

2. the main parameters are as follows:

   A, dark current, the dark resistance: photoresistor at a certain applied voltage, when no light irradiation, when flowing

   Current is called dark current. Applied voltage and the dark current ratio is called dark resistance;

   B, Sensitivity: Sensitivity refers to the resistance value of the photoresistor from light irradiation (dark resistance) when irradiated with light and the  Resistance (light resistance) of the relative change value.

   C, voltage characteristic curve. Volt-ampere characteristic curve used to describe the relationship between the applied voltage and the photoresistor photocurrent, of The photosensitive device, its photocurrent increases with the applied voltage.

   D, the temperature coefficient. Photoelectric effect photoresistor influenced by temperature, partial photoresistor optoelectronic at low temperatures  Higher sensitivity, whereas the sensitivity at high temperatures are lower.

   E, rated power. Refers to the rated power for a certain line photoresistor allowed power consumed, when the temperature rise   High, its power consumption is reduced.
